SPECIFICATIONS

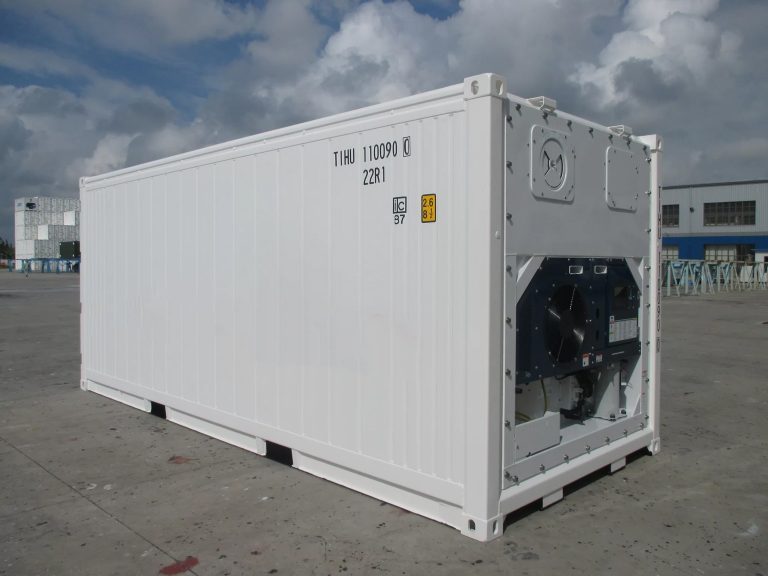

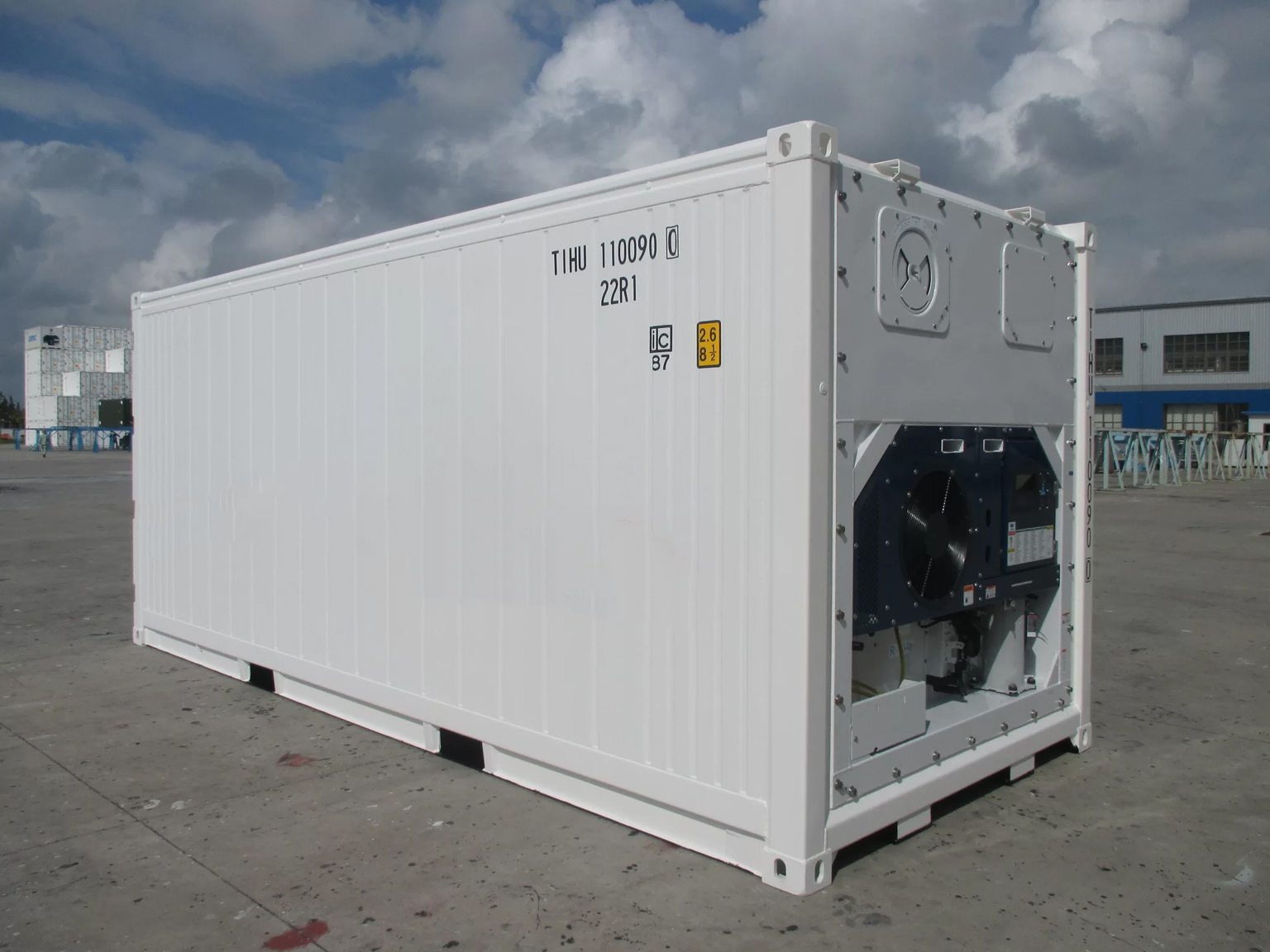

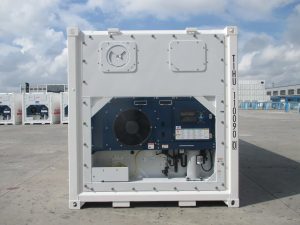

• 20′ refrigerated one trip container
• New 20’ ISO Reefer container body
• Stainless steel (MGSS) outer cladding
• 4 Automatic floor drains, self-closing (2 front and 2 rear)
• 4 Lashing bars (2 per side)
• Forklift pockets of 14” x 4.5” center to center spacing of 80”

ADDITIONAL FEATURES INCLUDED

• Panic Alarm with exterior siren and strobe light

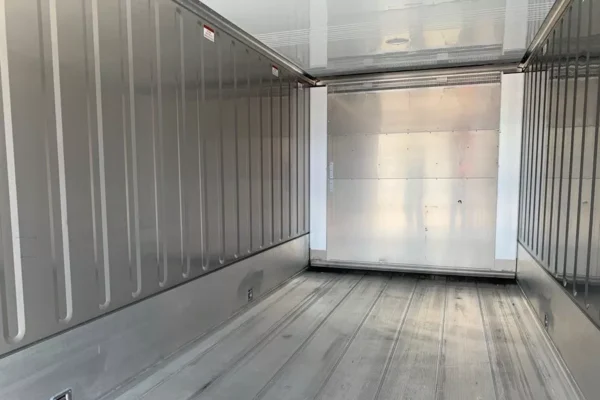

• Interior aluminum scuff liner

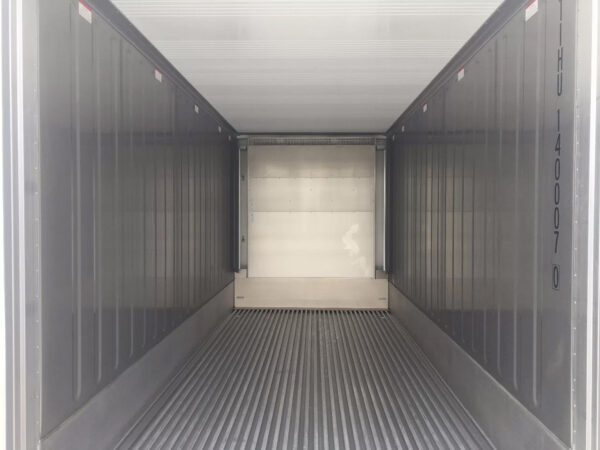

• Aluminum flat floor
• Heavy duty sliding door curtain to help maintain temperature
• Safety door, can be opened from inside

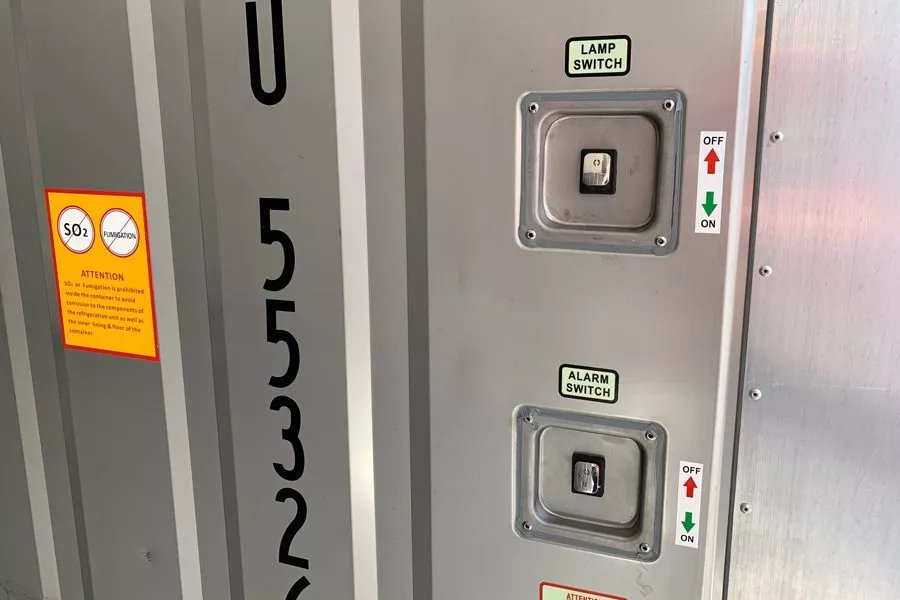

• Interior lighting plus light switch

MACHINERY SPECIFICATIONS

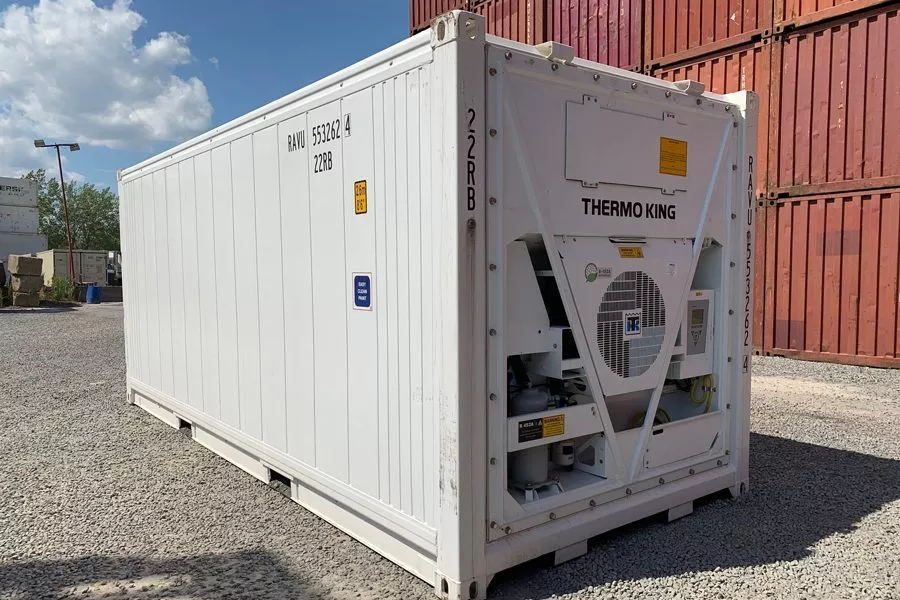

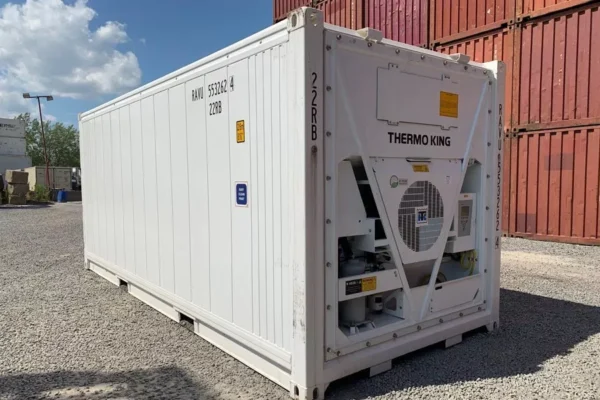

• Thermo King Magnum Plus refrigeration unit
• Digital scroll compressor with aluminized coating
• 460 volts, 3 phase
• 30 amps circuit requirement
• Temperature range: -40C to +30C
• Refrigerant: R452A
• 50ft. power cable

WARRANTY

• Warranty included with all new reefer containers directly from Thermo King through their extensive nationwide dealer network
• Reefer warranty attached

DIMENSIONS

Exterior: 20’L x 8’W x 8’6”H

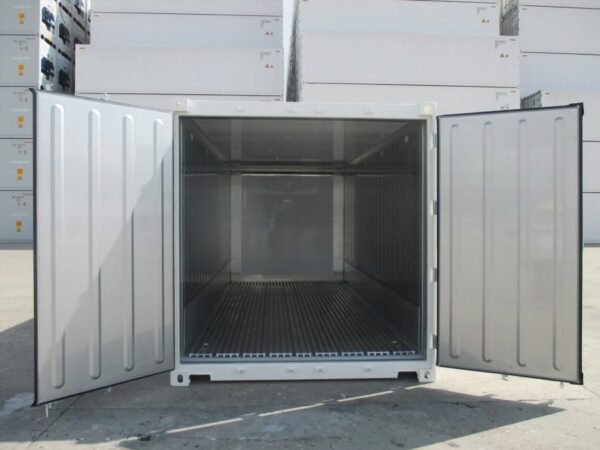

Interior: 17’10″L x 7’6”W x 7’5”H
Door Opening: 7’6”W x 7’5”H

Weight: 6,190 LBS
Payload: 61,010 LBS
