SPECIFICATIONS

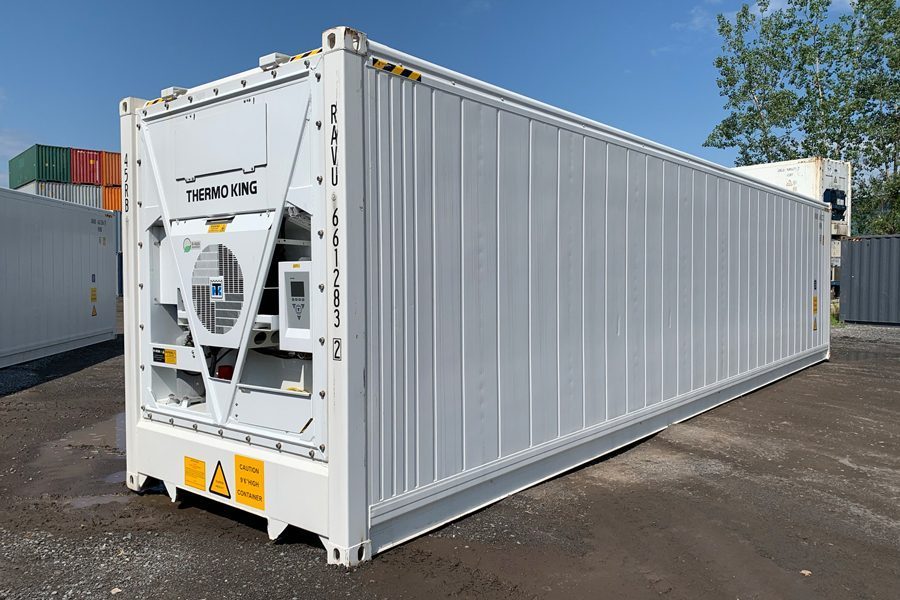

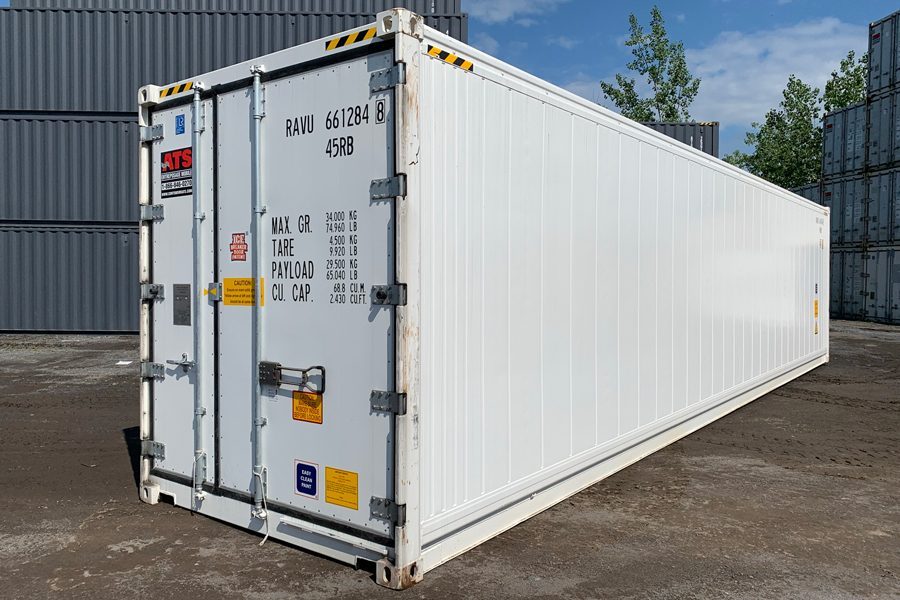

• 40’HC one trip reefer container
• New 40’ HC ISO Reefer container body
• Stainless steel (MGSS) outer cladding
• 4 Automatic floor drains, self-closing (2 front and 2 rear)
• Fully insulated with poly urethane

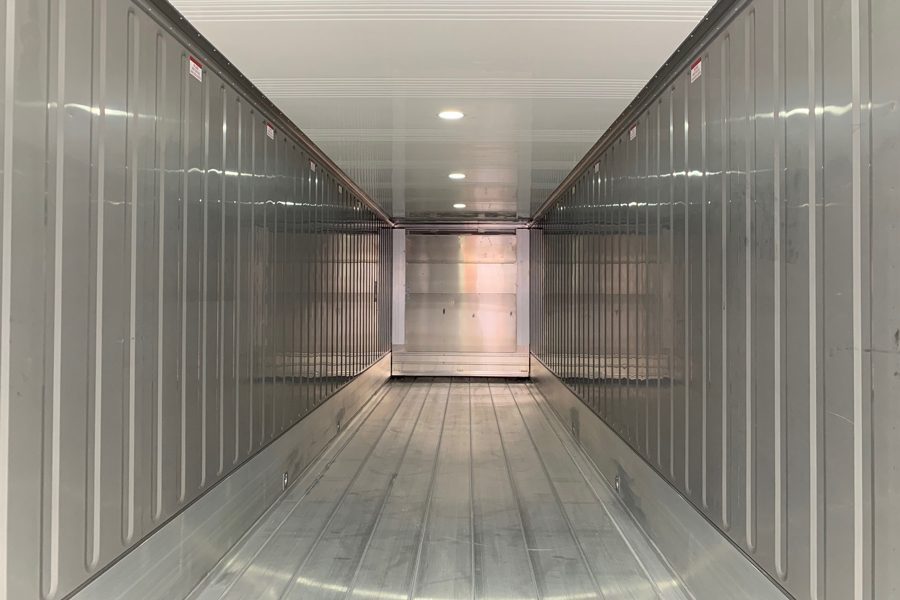

• Stainless steel interior walls, food grade

ADDITIONAL FEATURES INCLUDED

• Panic Alarm with exterior siren and strobe light
• Interior aluminum scuff liner
• Aluminum flat floor

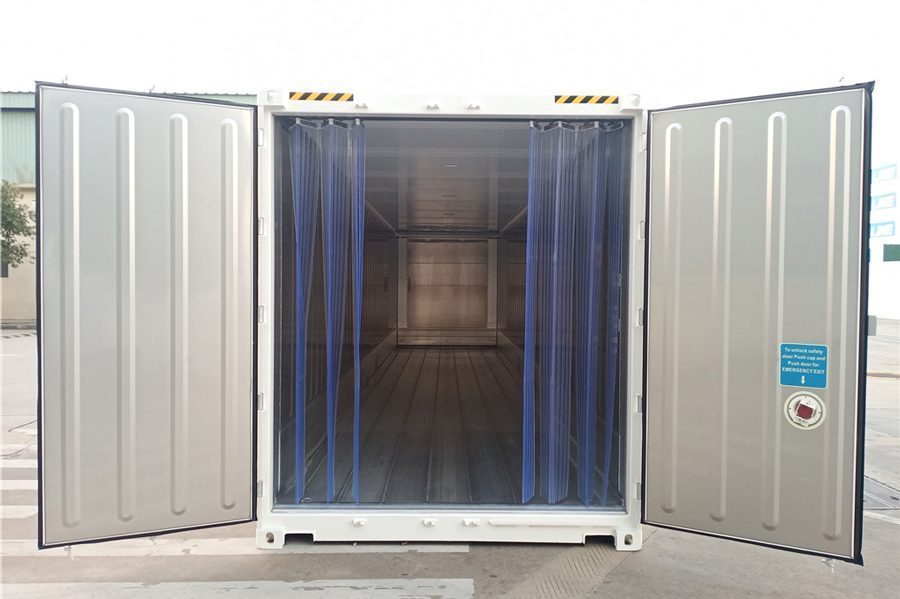

• Heavy duty sliding door curtain to help maintain temperature
• Safety door, can be opened from inside
• Interior lighting plus light switch

MACHINERY SPECIFICATIONS

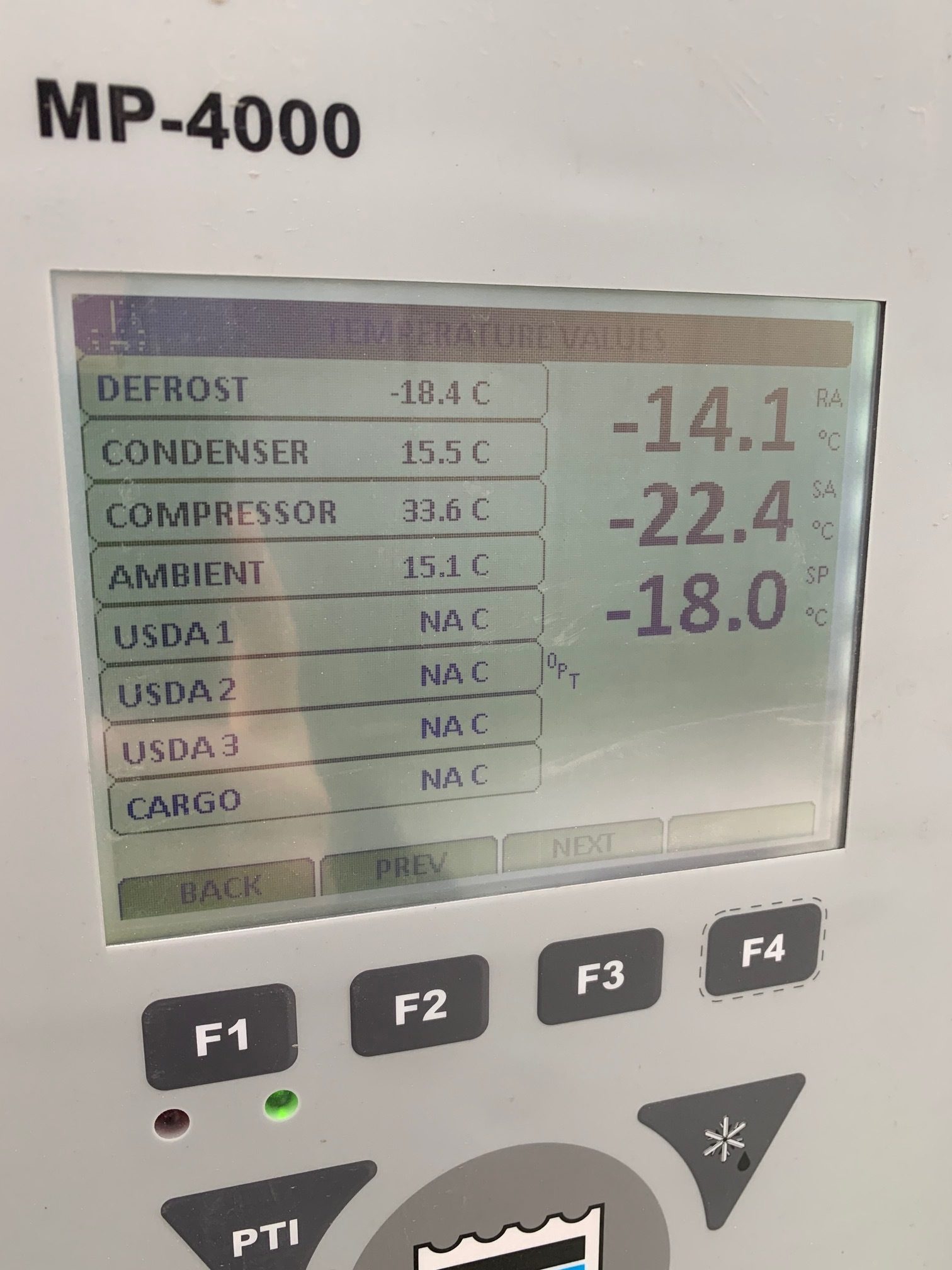

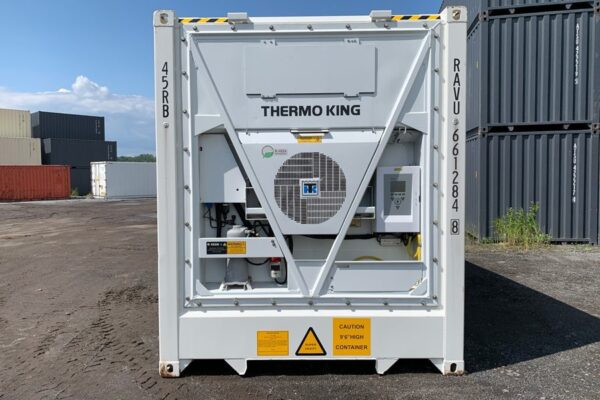

• Thermo King Magnum Plus refrigeration unit
• Digital scroll compressor with aluminized coating
• 460 volts, 3 phase
• 30 amps circuit requirement
• Temperature range: -40C to +30C
• Refrigerant: R452A
• 50ft. power cable

WARRANTY

• Warranty included with all new reefer containers directly from Thermo King through their extensive nationwide dealer network
• Reefer warranty attached

DIMENSIONS

Exterior: 40’L x 8’W x 9’6”H
Interior: 38’L x 7’6”W x 8’5”H
Door Opening: 7’6”W x 8’5”H

Weight: 9,920 LBS
Payload: 65,040 LBS
